John Deere JD350 Steering Clutch Installation

John Deere 350 Crawler Dozer
JD350 STEERING CLUTCHES

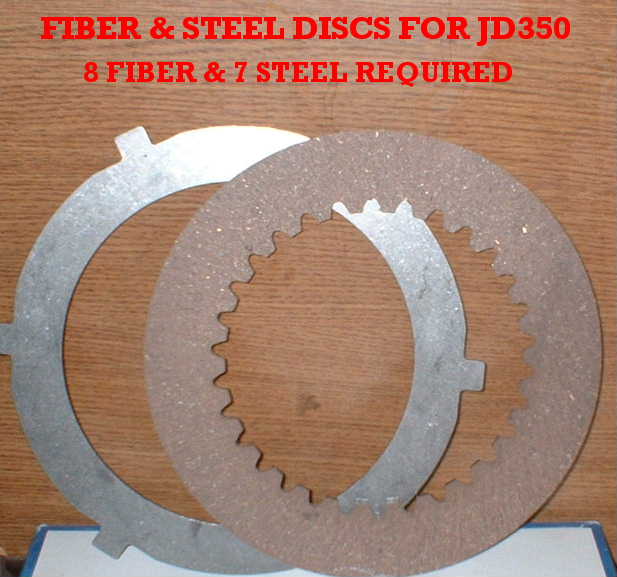

The John Deere Model 350's originally used 8 fiber discs p/n T20790 and 7 steel separator plates p/n T21315. When later models were developed they used bimetallic discs to replace the earlier style fiber discs. The bimetallic disc part number can be either the part number of AT117553 or T44128; they interchange The same numbers of discs were used in all circumstances. Most of the time you can get by with only changing the friction discs. The steel separator plates can usually be re-used. Check them for roughness, warping, or dishing and if they are clean, smooth, and straight, by all means re-use them!

TO SEE UPDATED LIST OF AVAILABLE PARTS, PRICING AND INFO....................(CLICK HERE)

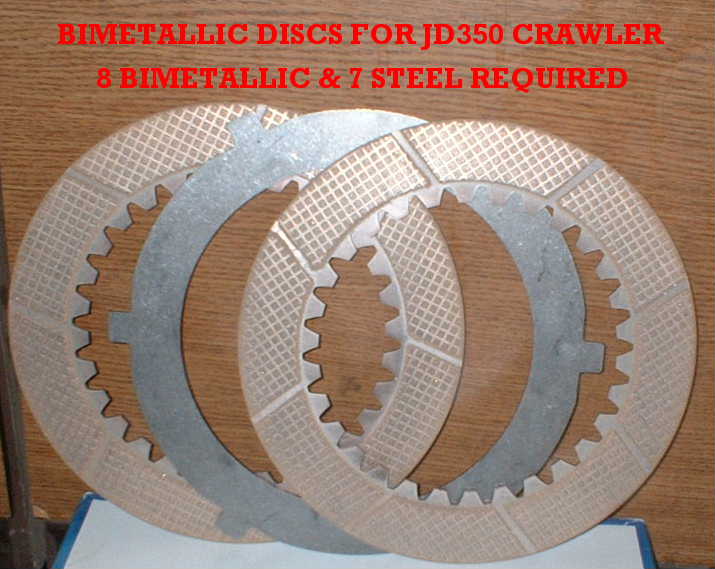

JD350 BIMETALLIC DISCS







Click HERE to view all of our new steering clutch discs.     gglogocopy.jpg (46227 bytes)


Email  steeringclutch@gmail.comtractor_parts_email for orders or questions.

visasmalllogo MClogoshrunk
Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
